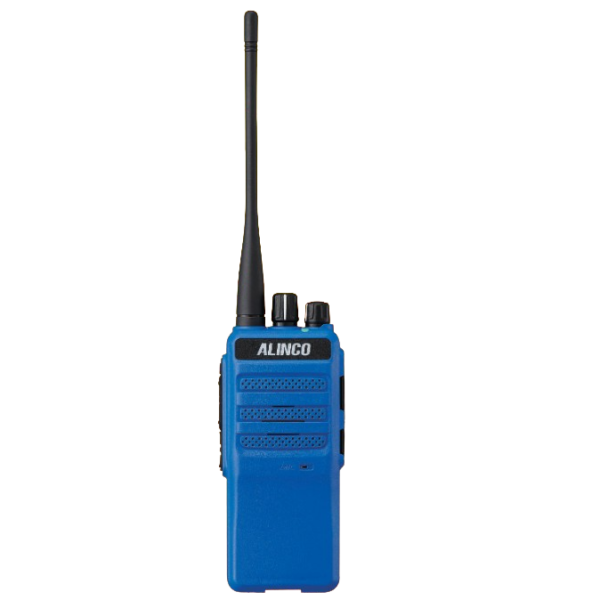

ALINCO INTRINSICALY SAFE WALKIE ( DJ DG X15 )
Original price was: ₹52,600.00.₹43,500.00Current price is: ₹43,500.00. 18%
ALINCO BASE STATION ( DR 138 )
Features of DR138HT/HE
- 3 Selectable Output Power Levels (VHF 60W /25W/10W, UHF 45W /25W/10W)
- PC-programmable 200ch memories
- Alphanumeric name tags
- Voice Compander (Reduce Noise & enhance audio clarity)
- Wide variety of selective calling features are built-in:2-Tone, 5-Tone, 50 CTCSS, 114 DCS, 4 Tone-burst tones and DTMF/ANI decode
- Radio stun/kill/revive functions to protect your communications security
- Large, bright LCD and easy-to-operate backlit keys
- Multi-function, backlit microphone enables direct frequency entry & more from keypad
- Various scan modes, Key lock, Wide/Narrow operations
12
People watching this product now!
Description
Optional Accessories
- PC connection cable ERW-7
Specifications
| Genaral | |
| Frequency range: | DR-138HE: TX/RX 144.000-145.9975 DR-138HT: TX 144.000-147.9975 RX 136.000-173.9975 DR-438HE: TX/RX 430.000-439.9975 (FCC/IC amateur radio models not available) |
|---|---|
| Modulation: | 16K0F3E(FM)/11K0F3E(Narrow FM) |
| Channel steps: | 2.5KHz, 5KHz, 6.25KHz, 8.33KHz, 10KHz, 12.5KHz, 15KHz, 20KHz, 25KHz, 30KHz, 50KHz |
| Memory channel: | 200 ch |
| Antenna impedance: | 50ohm unbalanced |
| Frequency stability: | +/- 2.5ppm |
| Power Supply Requirement: | 13.8V DC +/- 15% Negative ground |
| Current Drain: | Approx. 12A TX high / 0.6A RX max. / 0.4A RX squelched |
| Operating temperature: | -20digC to +60digC |
| Dimensions (w/o projection): | 145(W) x 47(H) x 190(D) mm approx. |
| Weight: | Approx. 1.2Kg |
| Transmitter | |
| Power Output: | DR-138: 60W / 25W / 10W DR-438: 45W / 25W / 10W |
| Modulation system: | Variable Reactance Frequency Modulation |
| Spurious emission: | Less than -60dB |
| Maximum frequency deviation: | +/- 5 KHz (FM) / +/- 2.5 KHz (NFM) |
| Receiver | |
| Receive system: | Direct conversion |
| Sensitivity (-12dB SINAD): | VHF 0.25uV / UHF 0.35uV or better |
| Squelch: | Carrier/CTCSS/DCS/5Tone/2Tone/DTMF |
| Audio output power: | 2.0 W (8 ohm, 10% distortion) |
